Kubota Corporation, which was founded in Japan, is a tractor and heavy equipment manufacturer. The company produces tractors and agricultural equipment, engines, construction equipment, pumps and more.
The engines of Kubota are in both diesel and gasoline, ranging from 0.276 liter to 6.1 liter and the cylinder configurations are from single cylinder to inline six cylinders. Kubota engines are widely used in agricultural equipment, tractors, and marine propulsion.
Firstly, we are going to talk about the engine codes of Kubota. As you can see V2203，the first characters represents the feature of the engine. For example, the first word “ V ” specifies four cylinders diesel.
|E||Single cylinder diesel|
|Z||Two cylinders diesel|
|D||Three cylinders diesel|
|V||Four cylinders diesel|
|F||Five cylinders diesel|
|S||Six cylinders diesel|
The Kubota V2203 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 39.9HP at 2800RPM.
|Bore and stroke||mm||80.0 x 92.4|
The Kubota V3300 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 59.1HP at 2600RPM.
|Bore and stroke||mm||98.0 x 110.0|
|Bore and stroke||mm||98.0 x 120.0|
The Kubota V3800 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 68.5HP at 2600RPM.
|Bore and stroke||mm||100.0 x 120.0|
|Bore and stroke||mm||118.0 x 140.0|
The 5-liter model Kubota V5009 has an output of 157.3 kW (210.9 hp) and aftertreatment devices including a Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR).
|Bore and stroke||mm||110.0 x 132.0|

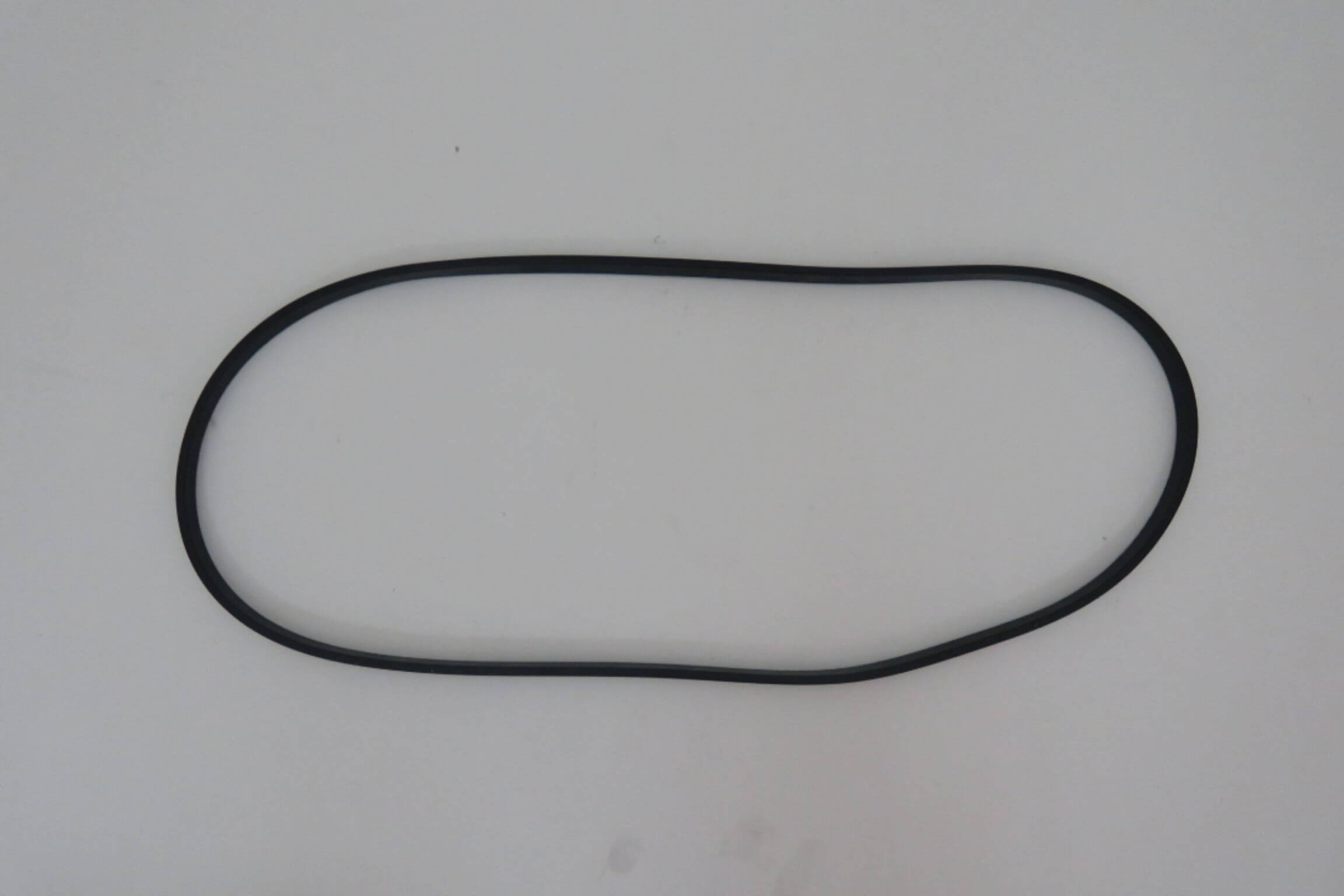

Kubota engine gasket replacement
Are you looking for gaskets for Kubota V2203, V3300, V3600, V3800, V6108, V5009 engines or other Kubota engines ?
MJ Gasket offers you various Kubota engine gasket and other types of engine gaskets which fit your needs. Regardless of which gaskets you need, you can send us a request and we will respond as soon as possible.
